European Style Single Girder Overhead Crane

European Style Single Girder Overhead Crane2.webp

European Style Single Girder Overhead Crane3.webp

European Style Single Girder Overhead CraneS.webp

Authentication mark:

For customized products, please fill out information and submit the form.

Capacity:

20-40t (customizable)

Lifting Height:

12-30m (customizable)

Voltage/Hertz:

(customizable)

Working Class:

Span:

7.5-25.5m (customizable)

Apply: It is widely used in industries such as manufacturing, warehousing, automotive, steel processing, food and beverage, chemical, construction, and recycling.

Product manual

E-Mail

Introduction

Technical Data

Application

Features

Certificate

Inquiry

PRODUCT INTRODUCTION

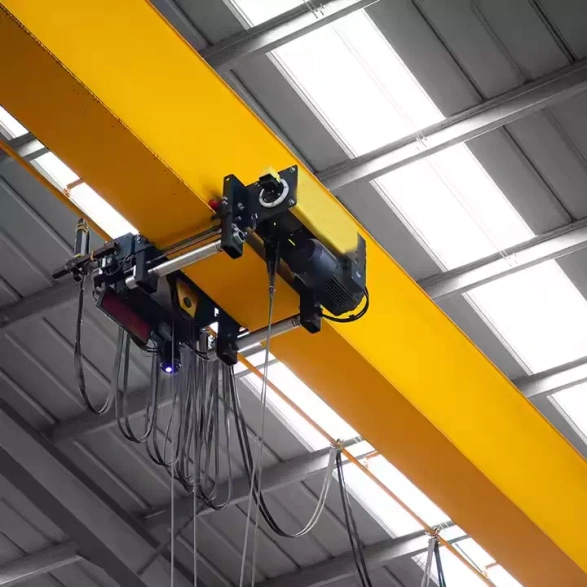

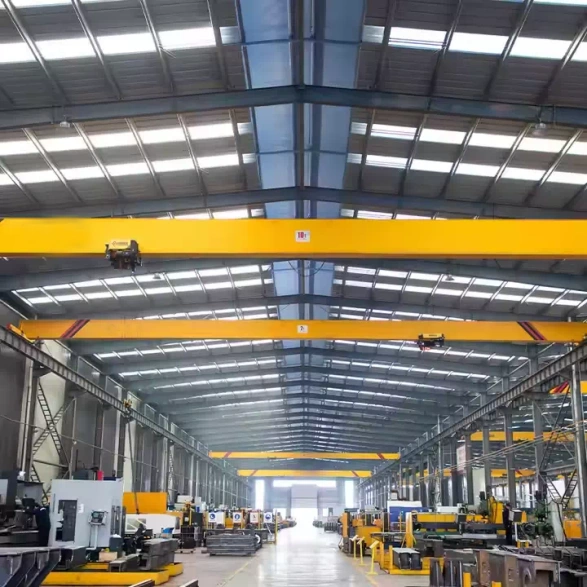

The European Single Girder Overhead Crane is a compact, lightweight lifting solution engineered according to European FEM or DIN standards. It consists of a single box-section girder, an electric wire rope hoist mounted either under or above the girder, and end carriages with motorized wheels. Its low-headroom design maximizes hook lifting height within limited building space, while the modular structure ensures easy installation and maintenance. This crane is typically available for capacities from 1 ton up to 20 tons, with spans tailored to customer workshop dimensions.

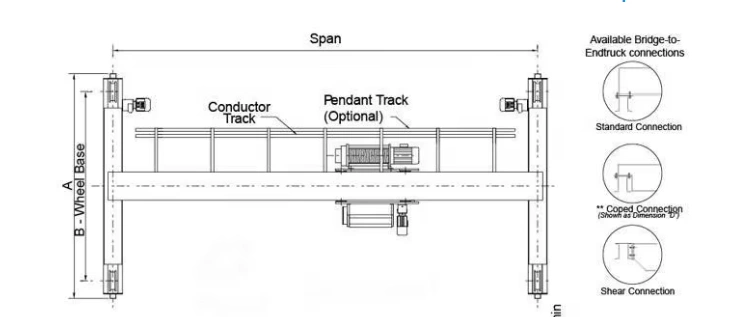

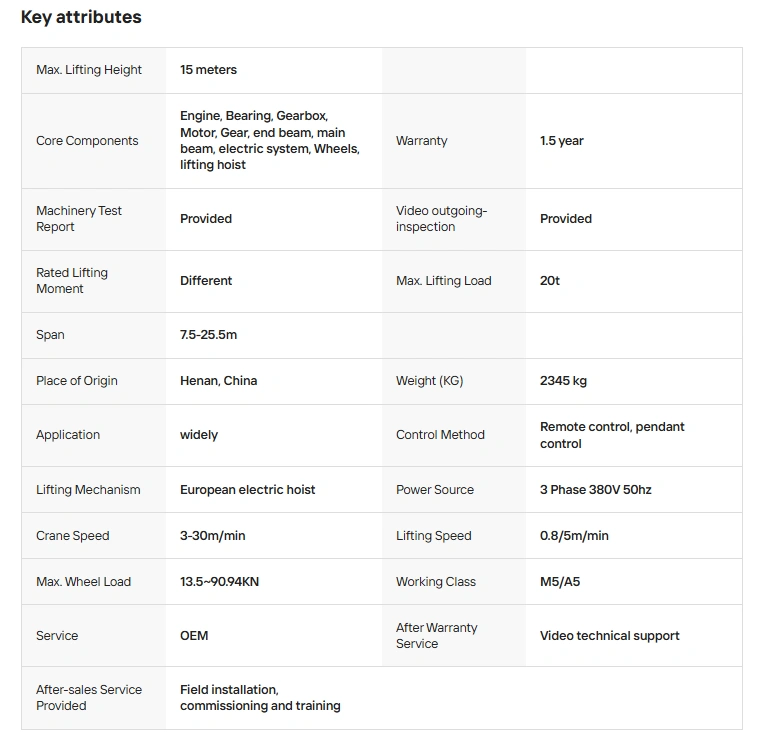

TECHNICAL DATA

Parameter	Specification	Parameter	Specification
Product Name	European Style Single Girder Overhead Crane	Design Standards	DIN, FEM, ISO, EN 13001
Lifting Capacity	1 – 25t	Span Length	5 – 36m
Lifting Height	6 – 12 m	Work Duty Class	A5
Lifting Speed	0.8/5 m/min dual speed	Trolley Travel Speed	2 – 20 m/min
Crane Travel Speed	3 – 60 m/min	Protection Class	IP54 – IP55; Insulation Class F
Core Components	Motor, gearbox, wire rope hoist, PLC, electric system, end carriage	Control Method	Wireless remote control / Pendant control
Power Supply	(customizable)	Working Temperature	-25°C to +50°C
Certification	Certification	Warranty	1 Year
Place of Origin	Henan, China

RELATED PRODUCTS

QL Parallel Type Hanging Overhead Crane

Apply: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Construction Works, Energy Mining

Clamps Overhead Crane

Apply: This Slab Clamp Bridge Crane ensures efficiency, safety, and adaptability in demanding industrial environments, making it the ideal solution for steel mills, ports, and heavy material handling facilities.

Anode Carbon Stacking Overhead Crane

Apply: Anode Carbon Stacking Overhead Crane excels in aluminum smelting, carbon anode production, and heavy block stacking—making it ideal for metallurgical, energy, and mining-related logistics.

APPLICATION

1. Manufacturing & Assembly Operations Raw Material Receiving: Unloading steel coils, plates, bars, and other raw materials from trucks and placing them into storage racks or production lines.Work-in-Process Handling: Lifting semi-finished components between machining, welding, and assembly stations with precise positioning.Finished Product Loading: Moving completed products to packaging areas or directly onto delivery vehicles for shipment.

2. Warehousing & Logistics Palletized Goods Handling: Lifting and stacking pallets of boxed, bagged, or drummed goods in high-density storage configurations to maximize warehouse capacity.Order Picking Support: Retrieving specific items or batches from storage racks and delivering them to packing or shipping zones.Inventory Rotation: Supporting First-In, First-Out (FIFO) systems with accurate retrieval capabilities for efficient stock management.

3. Steel & Metal Processing Coil & Slab Handling: Lifting steel coils, slabs, pipes, and structural sections from storage to processing lines such as cutting, bending, or heat treatment.Furnace Charging: Positioning metal workpieces into heat treatment furnaces, forging presses, or annealing ovens with precise alignment.Scrap Metal Management: Collecting and moving scrap metal cuttings, trimmings, and reject parts to designated bins or recycling areas.

4. Automotive Industry Engine & Component Lifting: Hoisting engine blocks, transmissions, axles, and body panels during assembly line operations.Die & Mold Handling: Lifting and positioning heavy stamping dies, injection molds, and tooling for press changes and maintenance.Vehicle Subassembly Transfer: Moving subassemblies such as chassis frames, door modules, and instrument panels between workstations.

5. Food & Beverage Industry Ingredient Handling: Lifting sacks, totes, and bulk containers of raw ingredients (flour, sugar, liquids, etc.) to mixing and processing equipment.Packaged Goods Stacking: Stacking finished product pallets in cold storage or dry warehouses for distribution.Sanitary Equipment Support: Lifting stainless steel tanks, mixing bowls, and processing vessels for cleaning and maintenance.

FEATURES

Hoisting Function – Smoothly lifts and lowers loads using an electric wire rope hoist, with precise speed control and overload protection to ensure safe operation within rated capacity.

Cross-Travel Function – Moves the hoist horizontally along the single girder, allowing accurate positioning of the load over the desired area.

Long-Travel Function – Drives the entire crane along the workshop runway rails, covering the full length of the work area for efficient material transportation.

Smooth & Sway-Free Operation – Equipped with variable frequency drives (VFD) for soft start and stop, reducing load swinging and improving positioning accuracy.

Safety & Control Functions – Includes emergency stop, overload limiter, limit switches, optional radio remote control, anti-collision devices, and low-noise braking for enhanced operational safety.
