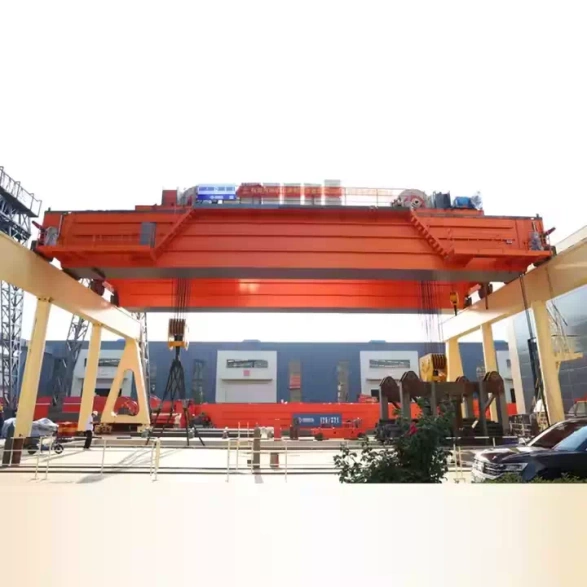

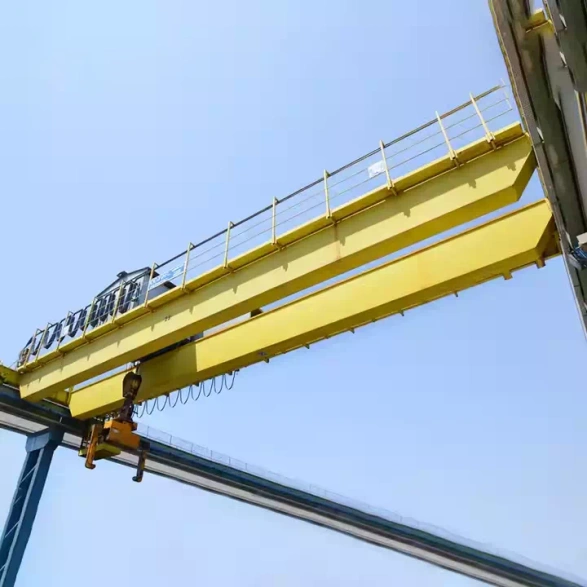

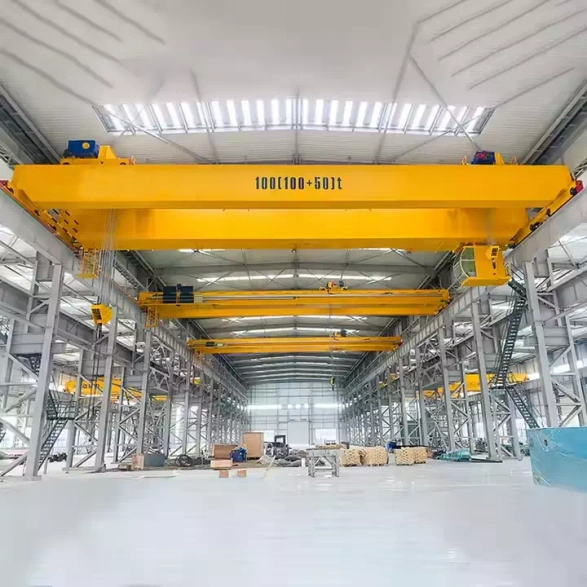

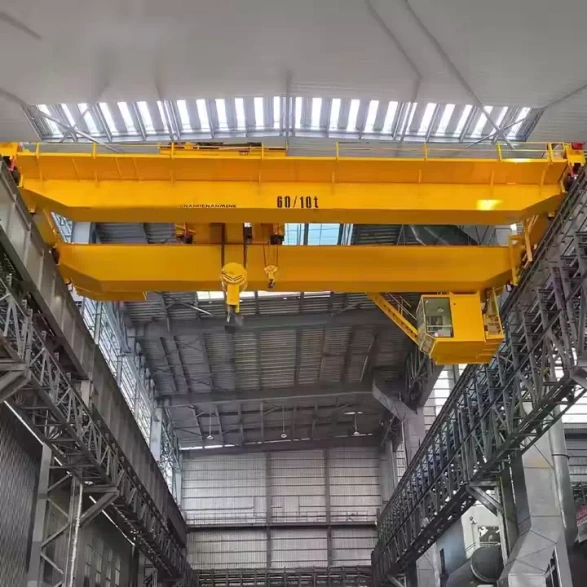

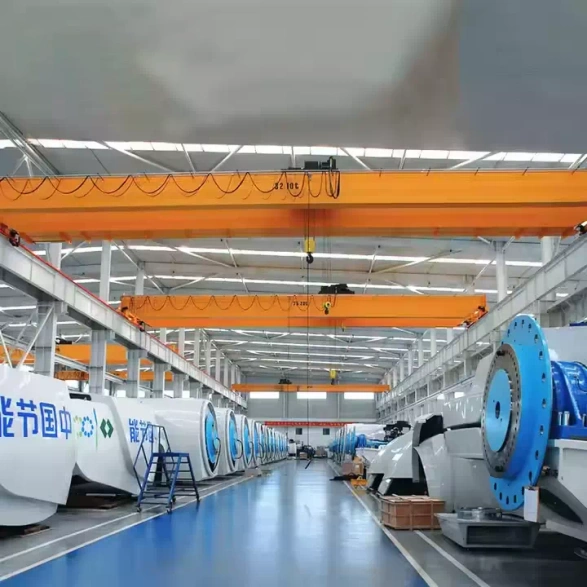

European Style Double Girder Overhead Crane
Authentication mark:
For customized products, please fill out information and submit the form.
Capacity:
1t-16t
Lifting Height:
30m (customizable)
Voltage/Hertz:
380V 50Hz
Working Class:
A5
Span:
7.5-31.5m
Apply: This crane is widely used in heavy-duty industries such as steel manufacturing, shipbuilding, heavy machinery assembly, mining, and large-scale warehousing.
CONSULT
WHATSAPP
Introduction
Technical Data
Application
Features
Certificate
Inquiry
PRODUCT INTRODUCTION

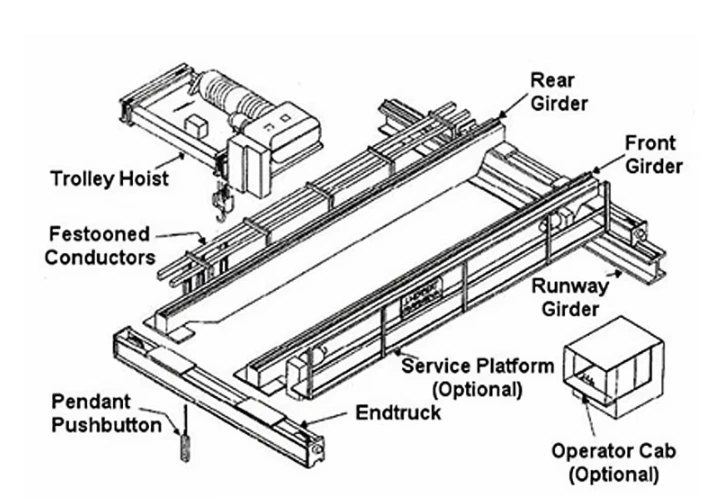

The European Double Girder Overhead Crane is a heavy-duty lifting solution engineered according to European FEM or DIN standards. It consists of two parallel box-section girders, an electric wire rope hoist or trolley running on top of the girders, and robust end carriages with motorized wheels. The double girder design provides greater hook height, higher lifting capacity, and improved stability compared to single girder cranes. This crane is typically available for capacities from 5 tons up to 100 tons or more, with spans customized to customer workshop dimensions. It is ideal for frequent, heavy-duty lifting operations in demanding industrial environments.

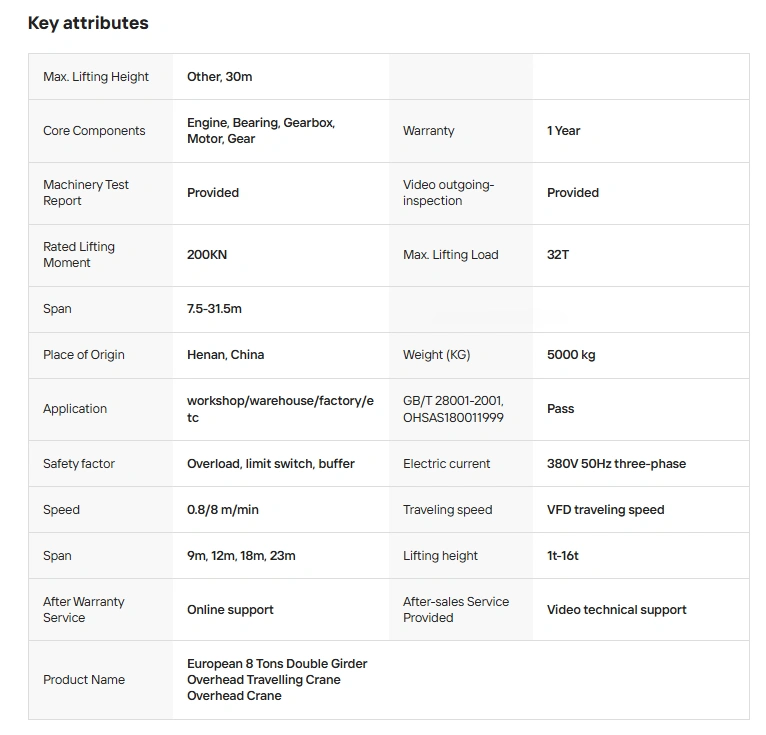

TECHNICAL DATA
APPLICATION
1. Steel & Metal Manufacturing – Lifting and positioning steel coils, slabs, plates, pipes, and finished sections during production, storage, and loading. Supporting furnace charging, heat treatment handling, and scrap metal management.
2. Shipbuilding & Heavy Machinery Assembly – Handling large components such as engine blocks, propeller shafts, deck sections, and press frames. Assisting in the assembly, positioning, and turnover of heavy workpieces.
3. Mining & Quarrying – Lifting and moving heavy mining equipment, crusher parts, conveyor components, and bulk material containers. Supporting maintenance and repair operations of large machinery.
4. Power Generation & Heavy Infrastructure – Handling turbines, generators, transformers, and large pumps in power plants. Supporting construction and maintenance of dams, bridges, and industrial facilities.
5. Large-Scale Warehousing & Container Handling – Stacking heavy pallets, steel bundles, and containerized goods in high-density storage configurations. Loading and unloading heavy cargo from trucks, trains, or ships.
2. Shipbuilding & Heavy Machinery Assembly – Handling large components such as engine blocks, propeller shafts, deck sections, and press frames. Assisting in the assembly, positioning, and turnover of heavy workpieces.
3. Mining & Quarrying – Lifting and moving heavy mining equipment, crusher parts, conveyor components, and bulk material containers. Supporting maintenance and repair operations of large machinery.
4. Power Generation & Heavy Infrastructure – Handling turbines, generators, transformers, and large pumps in power plants. Supporting construction and maintenance of dams, bridges, and industrial facilities.
5. Large-Scale Warehousing & Container Handling – Stacking heavy pallets, steel bundles, and containerized goods in high-density storage configurations. Loading and unloading heavy cargo from trucks, trains, or ships.
FEATURES
1
Hoisting Function – Smoothly lifts and lowers heavy loads using a high-capacity electric wire rope hoist or trolley, with precise speed control and overload protection to ensure safe operation within rated capacity.
2
Cross-Travel Function – Moves the hoist or trolley horizontally along the two parallel girders, allowing accurate positioning of heavy loads over the desired area with enhanced stability.
3
Long-Travel Function – Drives the entire crane along workshop runway rails, covering the full length of the work area for efficient heavy material transportation.
4
Smooth & Sway-Free Operation – Equipped with variable frequency drives (VFD) for soft start and stop, reducing load swinging and improving positioning accuracy, especially critical for heavy or delicate loads.
